Definition
#

Diaflux is a graphical workflow authoring plugin for KnowWE.
It is used to model complex problems in an easy to read and understandable fashion.

Syntax and Semantic
#

An Diaflux workflow is defined inside the markup DiaFlux

Example#

Diaflux Editor#

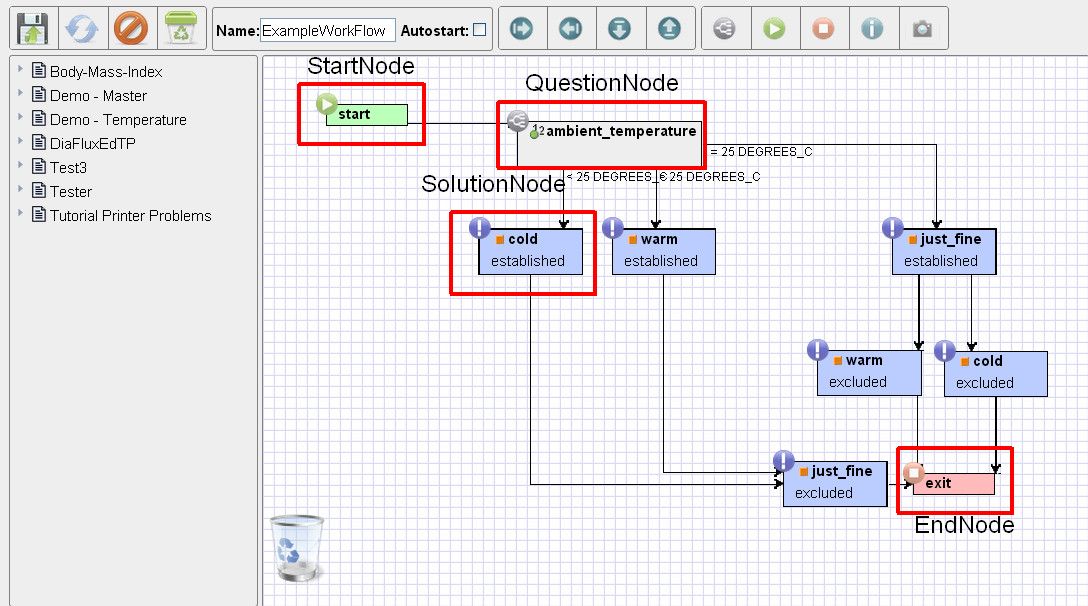

The Diaflux workflow may be edited using the Visual Editor.

Diaflux elements#

• Start node: entry point for a DiaFlux

• Exit node: exit point of a DiaFlux

• Action node: select a question, solution, or other flowchart and model an interaction with this it.

• Comment node: use this node to provide annotations to transitions or nodes.

• SnapShot node: used to inhibit the truth maintainance to reverse decisions before this snapshot. (Behaves like a diode.)


Editor tools
#

• Save flowchart and close editor

• Revert changes

• Close editor (without saving)

• Delete flowchart


Best Practices
#

• A DiaFlux flowchart shall have a unique name.

• One flowchart needs to be checked for Autostart. (That is where a session workflow will start.)

• Do not overload a single flowchart. Model rather small parts and reference them in a parent flowchart.
  Rule of thumb: Not more than a monitors field of view.
• Use commend nodes (light blue) to structure flows/arrows.

Terminology of DiafluxExample #
